Lead Lined Wood Doors
At Ray-Bar Engineering, we manufacture lead-lined wood X-ray doors for radiation shielding applications. Lead lined solid core wood doors are manufactured to meet national woodwork standards and constructed with the highest quality core, edging, and face veneers available. Our lead-lined wood doors provide reliable radiation protection while maintaining a professional appearance for healthcare and industrial environments.
Features and Options for Lead-Lined Wood Doors
- 10 standard lead thicknesses available (view the thickness chart for more details)
- Wide selection of natural wood veneers available
- Wide selection of laminate colors and styles from Wilson Art and Formica
- Typically available within 2 weeks
- Available with Ray-Bar Lead Lined Vision Frames or Lead Lined Light Proof Louvers
In-Stock Selection of Standard Veneers for Lead-Lined Wood Doors
- Rotary Cut Natural Birch
- Plain Sliced Red Oak
- Hardboard
- Rotary Cut Mahogany
- Legacy Walnut
- Legacy Oak
- Mendocino Oak
Note that natural veneers will vary naturally, including graining, texture, and coloring. Additional services like staining, coating, sealing, finishing, or painting are not included.
 |
 |
 |
 |
 |
 |
 |
|
| Birch | Red Oak | White Oak | Maple | |
 |
 |
 |
 |
 |
| Mohagany | Rift Cut Oak | Cherry | White Ash | Walnut |
Textured composite hardboard veneers
 |
 |
 |
| Legacy Walnut | Legacy Oak | Medocino Oak |
Available laminates include Wilsonart, Formica, and Nevamar.
 |
 |
 |
 |
| Castle Oak | Fusion Maple | Baltimore Cherry | Grey Nebula |
 |
 |
 |
 |
| Coral | Designer White | Fashion Grey | Sand |
A wide selection of plastic laminate colors and designs are available. Please see www.wilsonart.com or www.formica.com for available selections.
Radiation Shielding Requirements for Lead-Lined Wood Doors
Per NCRP Reports #49 and #147 and Other Radiation, Health, and Safety Codes
- All lead-lined doors, vision lites, X-ray glass, lead-lined frames, and lead-backed drywall must meet or exceed the shielding value specified by the project physicist or qualified expert. Customers must confirm required lead thickness before ordering.
- Doors must have internal lead shielding that covers the full height and width.
- To prevent radiation leakage, the gap between the bottom of the door and the floor should be as small as possible. If the gap is 1 inch (2.5 cm) or more, a lead threshold or lead-lined door sweep is required.
- Lockset hardware should be lead-lined if the shielding exceeds 1/16" thick or if specified.
- Any lead glass in a shielded door must be X-ray safety glass, permanently labeled to meet ANSI Z97.1 and CPSC 16 CFR 1201 Category 2 impact resistance standards.
- Door must have an interlock switch so that the X-ray machine cannot be activated when door is open or ajar.
- An illuminated "X-Ray On" sign over the door entrance is recommended to prevent accidental entry during X-ray procedures. The light should be tied to the machine so it turns on during X-ray machine activation.
- Fire-rated partitions must use UL-classified lead-backed drywall, like Ray-Bar RB-LBG, with at least a 1/2" overlap into the door frame to block radiation and meet fire codes.
Note: X-ray safety glass is not a "tempered" product and is available from Ray-Bar

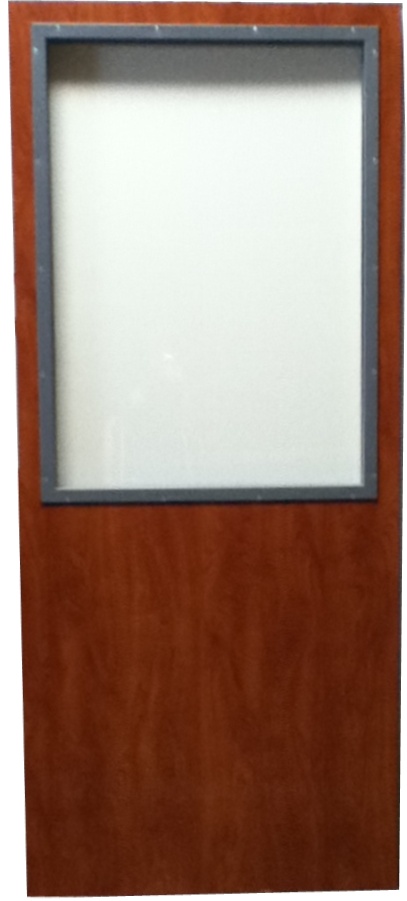

Lead lined solid core wood doors are also available with Ray-Bar Lead Lined Vision Frames or Lead Lined Light Proof Louvers.
 |
 |
| Lead Lined Vision Frames | Shielded Light Proof Louver |
Additional Information for Lead-Lined Wood X-Ray Doors
- Lead-lined wood doors are not fire-rated
- View or download Ray-Bar Lead Lined Solid Core Wood Door Specifications
- For additional information on these Ray-Bar products, click here
For listing of in-stock lead thicknesses see Ray-Bar Sheet Lead Stock Thickness Chart
 |
 |
 |
 |
 |
 |
 |
 |
Abuse-Resistant Laminate Options for Lead-Lined X-Ray Doors
Ray-Bar lead-lined wood doors are available with durable laminate options from Kydex and Acrovyn. These abuse-resistant laminate faces protect the door in high-volume medical settings. The laminate provides a longer service life by reducing the need for repairs and replacement. Kydex and Acrovyn face laminations are available in many colors, patterns, and designs.
 |
 |
| Solid Color Acrovyn | Wood Grain Acrovyn |
Contact Ray-Bar Engineering to Get Lead Lined Wood Doors for Your Application
Contact Ray-Bar or request a quote to learn how we can provide you with lead-lined wood X-ray doors customized to meet your application’s requirements. With over 80 years of expertise in manufacturing life-protection materials, we are the leader in supplying medical, hospital, and industrial facilities worldwide with superior-performance radiation shielding solutions. For ultimate reliability and proven solutions, choose Ray-Bar Engineering.
